WIP: Engineering frame for the printer #1

New Issue
Open
opened 2022-02-17 13:05:01 +01:00 by kreyren · 0 comments
kreyren commented 2022-02-17 13:05:01 +01:00
Owner
Copy Link

Context: I am reworking the design of VoronDesign's Voron 2.4 to be more:

  • Functional
  • Technoliberal (converting from Fusion360 to FreeCAD+OpenSCAD/LibFive)
  • Economical
  • Mass-producible

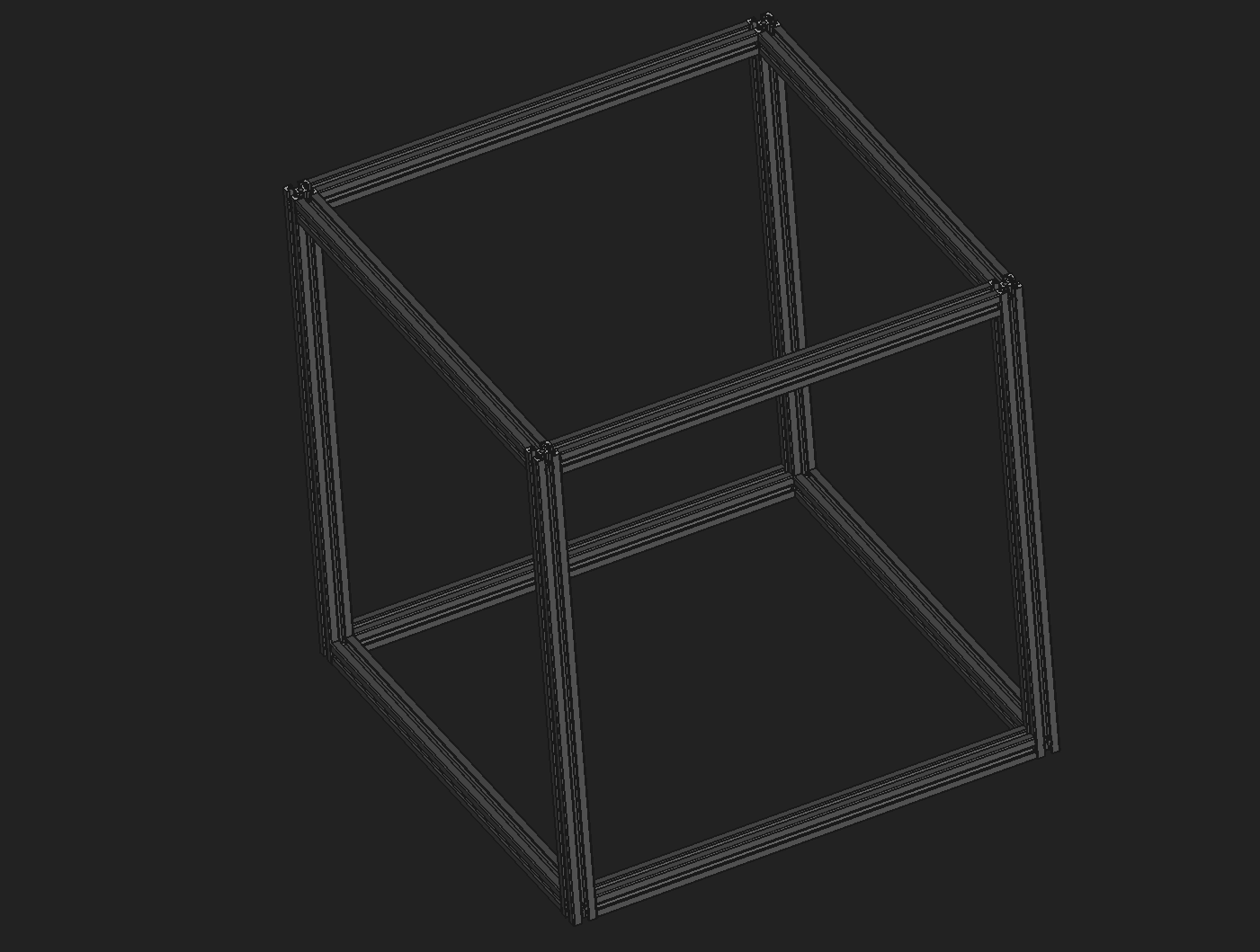

Currently the CoreXY design is using a 2020 v-slot rail extrusions for the frame:

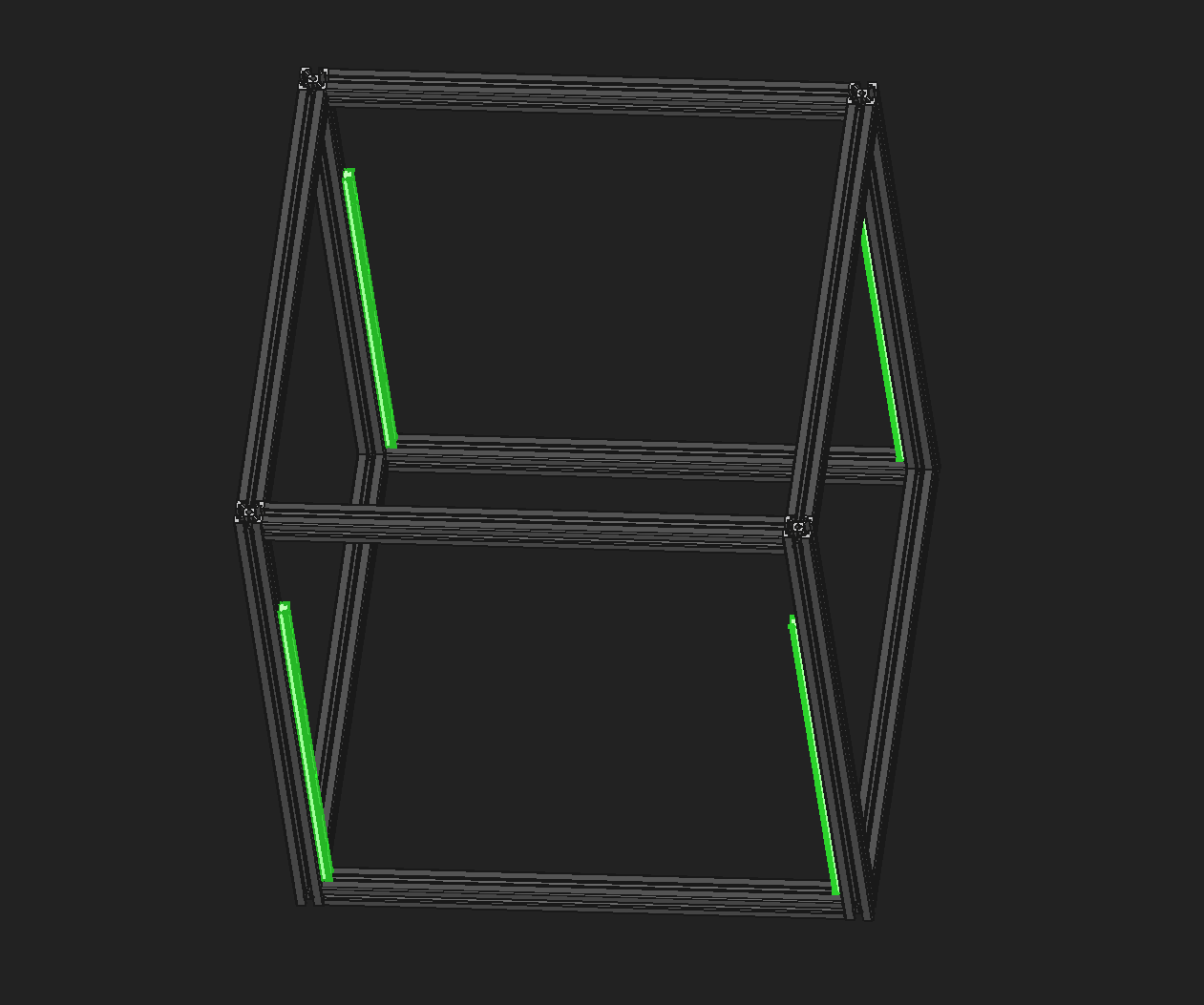

With linear rails attached on the inside:

Where the alluminium extrusions are:

  1. significantly less economical compared to 3D printed rPLA or plastic molded parts (+- 8x more expensive in comparison)
  2. Too high of a safety factor compared to custom design in rPLA (over-engineered)
  3. Difficult to change e.g. shortning and extending and changing the shape

Issues with rPLA parts:

  1. the failure mode in case of a high temperature is melting and then burning, but this can be workarounded through using additives

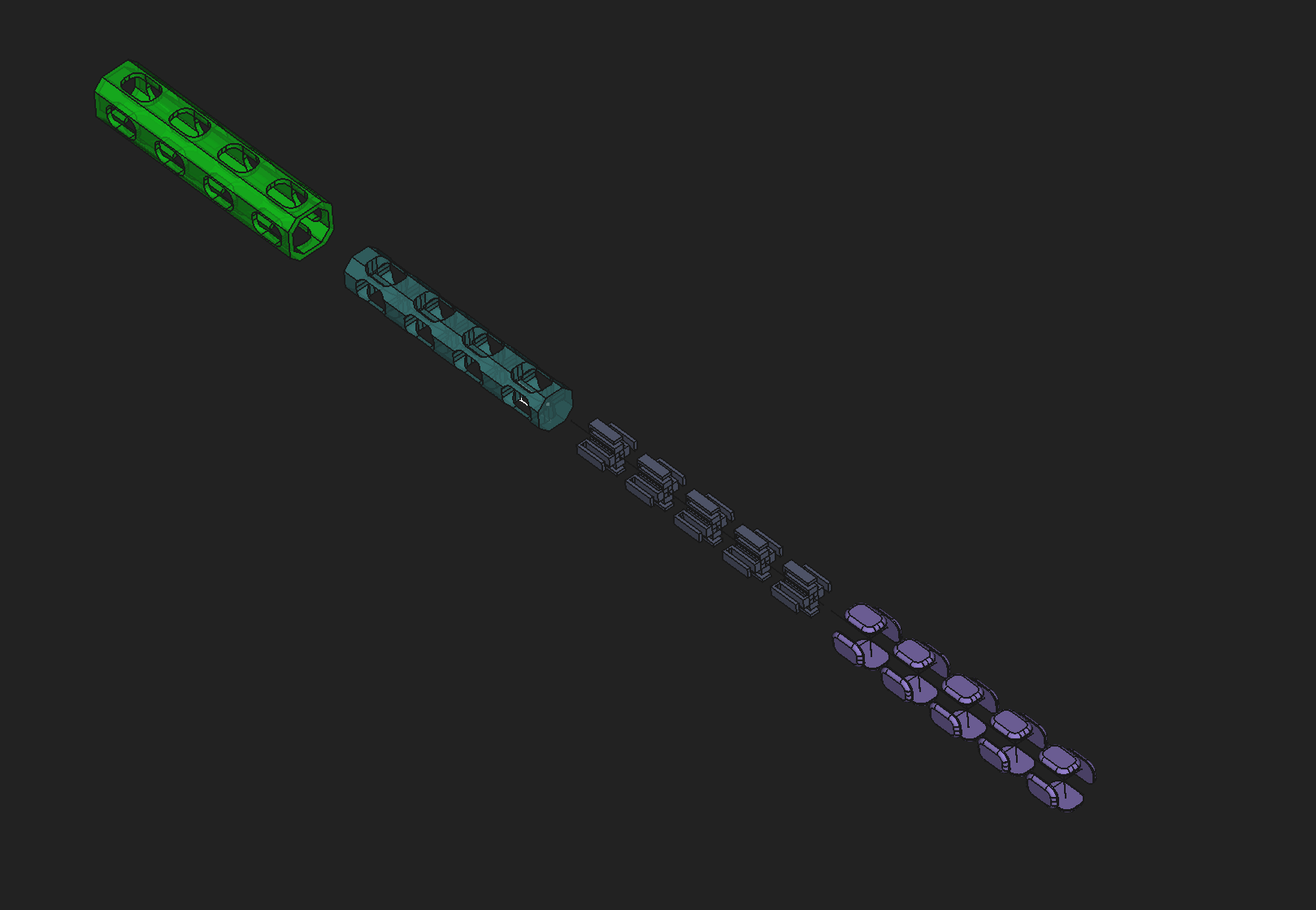

First prototype designed to be integrated in 2020 alluminium extrusion-like geometry failed as the "pegs" used to click into the indexing slots to enable the expansion is not well optimized for additive manufacturing as it's causes print failures that interfiere with the function

Context: I am reworking the design of VoronDesign's Voron 2.4 to be more: * Functional * Technoliberal (converting from Fusion360 to FreeCAD+OpenSCAD/LibFive) * Economical * Mass-producible Currently the CoreXY design is using a 2020 v-slot rail extrusions for the frame: ![](https://git.dotya.ml/attachments/c082294f-a37b-4e97-9121-5b0178395f9f) With linear rails attached on the inside: ![](https://git.dotya.ml/attachments/1f2079e9-68fb-46ed-a96d-154df7495eca) Where the alluminium extrusions are: 1. significantly less economical compared to 3D printed rPLA or plastic molded parts (+- 8x more expensive in comparison) 2. Too high of a safety factor compared to custom design in rPLA (over-engineered) 3. Difficult to change e.g. shortning and extending and changing the shape Issues with rPLA parts: 1. the failure mode in case of a high temperature is melting and then burning, but this can be workarounded through using additives --- First prototype designed to be integrated in 2020 alluminium extrusion-like geometry failed as the "pegs" used to click into the indexing slots to enable the expansion is not well optimized for additive manufacturing as it's causes print failures that interfiere with the function ![](https://git.dotya.ml/attachments/4c92d6a9-e628-410c-9111-bc8c4c112c12)
69 KiB
36 KiB
85 KiB
structural-experiments.FCStd.zip
1.9 MiB
